To meet the needs of large-scale high-brightness lighting at work sites such as firefighting, electric power, public security and other large-scale construction operations, emergency repairs, rescue and disaster relief, this series of mobile lighting equipment has been developed.
Online InquiryDescription:
To meet the needs of large-scale high-brightness lighting at work sites such as firefighting, electric power, public security and other large-scale construction operations, emergency repairs, rescue and disaster relief, this series of mobile lighting equipment has been developed.
Features:

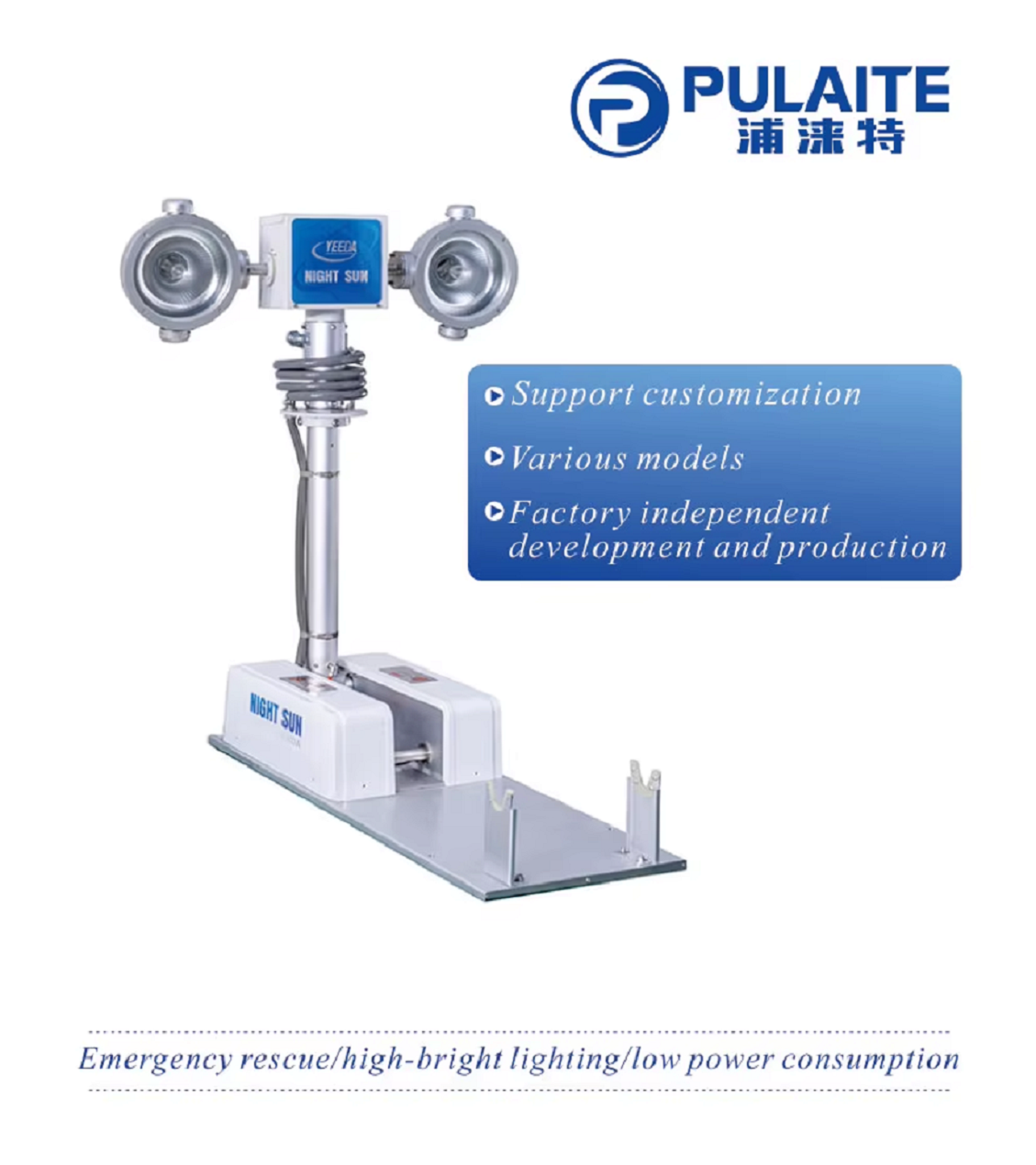

This model is a series of 1.8 meter vehicle roof mounted type lighting equipment, suitable for vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, fire fighting vehicles, and other medium-sized special vehicles.
It has the function of up and down, rising from horizontal to vertical 90 degrees. The rotating head can be 380° horizontal rotating and 330° vertical rotating to complete positioning lighting.
A camera mounting bracket can be installed on the top of the rotating head or mounted between the two lights. The camera video cable and its control line can also be reserved to meet the camera function if needed. The camera rotates horizontally at 380° and vertically at 180°, and the reset position can be selected from the two reset states of the lamp mirror facing forward or downward after the device is down.
Specifications:
|
Models |
System rated voltage |
Lamps rated voltage |
Light source |
Lamp type |
Lamp power |
Light lumen |
Net weight |
Pitch NO. |
Horizontal rotary |
Vertical rotary |
|
CHG182250 |
DC12V/24V |
AC220V |
Metal halogen |
Flood/Spot |
250W*2 |
40000lm |
50kg |
3 |
380° |
330° |
|
CHG182400 |
DC12V/24V |
AC220V |
Metal halogen |
Flood/Spot |
400W*2 |
72000lm |
50kg |
3 |
380° |
330° |
|
CHG182600 |
DC12V/24V |
AC220V |
Metal halogen |
Flood/Spot |
600W*2 |
90000lm |
50kg |
3 |
380° |
330° |
|
CHG1821000 |
DC12V/24V |
AC220V |
Metal halogen |
Spot |
1000W*2 |
110000lm |
50kg |
3 |
380° |
330° |
|
CHG184250 |
DC12V/24V |
AC220V |
Metal halogen |
Flood/Spot |
250W*4 |
80000lm |
58kg |
3 |
380° |
330° |
|
CHG184400 |
DC12V/24V |
AC220V |
Metal halogen |
Flood/Spot |
400W*4 |
144000lm |
58kg |
3 |
380° |
330° |
|
CHG184600 |
DC12V/24V |
AC220V |
Metal halogen |
Flood/Spot |
600W*4 |
180000lm |
58kg |
3 |
380° |
330° |
|
CHG1841000 |
DC12V/24V |
AC220V |
Metal halogen |
Spot |
1000W*4 |
220000lm |
58kg |
3 |
380° |
330° |
