To meet the needs of large-scale high-brightness lighting at work sites such as firefighting, electric power, public security and other large-scale construction operations, emergency repairs, rescue and disaster relief, this series of mobile lighting equipment has been developed.
Online InquiryDescription:
To meet the needs of large-scale high-brightness lighting at work sites such as firefighting, electric power, public security and other large-scale construction operations, emergency repairs, rescue and disaster relief, this series of mobile lighting equipment has been developed.
Features:
This model is a series of 2.5 meter vehicle roof mounted type lighting equipment, suitable for vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, fire fighting vehicles, and other medium-sized special vehicles.
It has function of up and down, rising from horizontal to vertical 90 degree, the rotating head can be 380° vertical rotating and 330° horizontal rotating to complete positioning lighting.

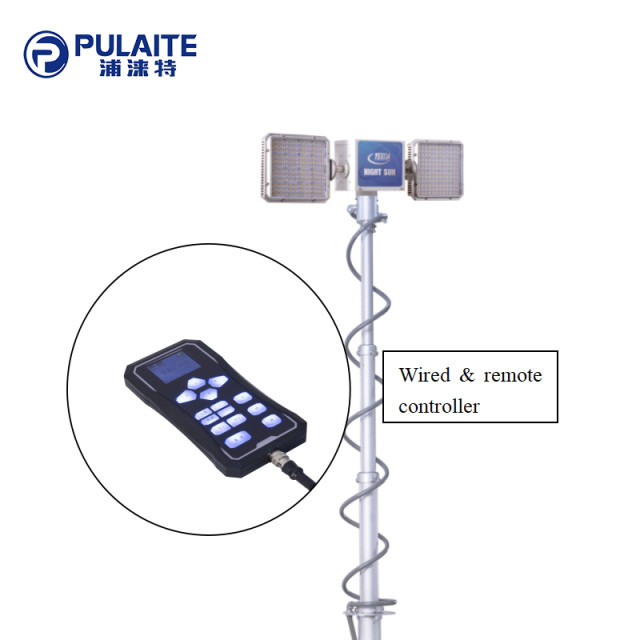

A camera mounting bracket can be installed on the top of rotating head or mount between the two lights. The camera video cable and its control line can also be reserved to meet the camera function if you need. Camera rotates horizontally at 380 ° and vertical at 180 °, the reset position can be selected from the two reset states of the lamp mirror facing forward or downward after the device is down.
The lights adopts LED solid-state lighting or metal halogen as light source, power can be choose from 90W to 1000W.
Specifications:
Models |
System Rated voltage |
Lamps Rated voltage |
Light source |
Lamp type |
Lamp power |
Light lumen |
Net.Weight |
Pitch NO. |
Horizontal rotary |
Vertical Rotary |
CHX252600 |
DC12V/24V |
AC220V |
LED |
Flood/Spot |
600W*2 |
138000lm |
55kg |
4 |
380° |
330° |
CHX254600 |
DC12V/24V |
AC220V |
LED |
Flood/Spot |
600W*4 |
276000lm |
63kg |
