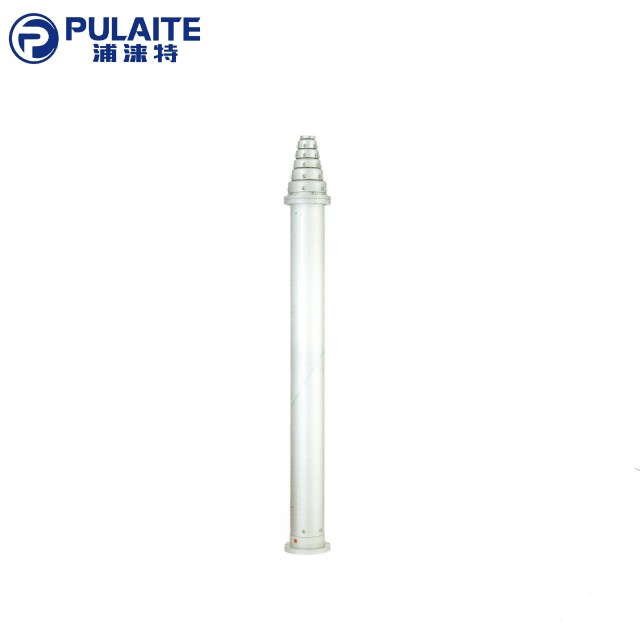

SG50-A pneumatic telescoping mast 5 meter

SG series mast is a telescopic mast pole specially designed for vehicle-mounted lighting equipment. The mast is fixed in the cabin or the periphery of the vehicle body, and vertically lifts lights, camera , antenna equipment, etc., to achieve customer predetermined functions.

Online Inquiry

Description:

COLLAPSE HEIGHT: 1.5 meter
EXTENDED HEIGHT: 5 meters
MAX. PAYLOAD CAPACITY: 20 kg
TYPE OF MOUNTING: External
NUMBER OF SECTIONS: 5
MAX DIAMETER: 98mm diameter
COLLAR MATERIAL: Aluminum alloy
FINISH: Hardcoat (Military Green Color)
MAST WEIGHT: 25.0kg approximately
TEMPERATURE: –50°C to +60°C

NET WEIGHT: 32.0kg

With control box of wired and remote controller for control the mast rising up, stop & drop.

WEATHER RESISTANCE: Can withstand maximum wind speed of 60km/h at full extension.


Spare parts:

Control box with wired and remote controller for control mast rise and drop and stop, include small air pump.
