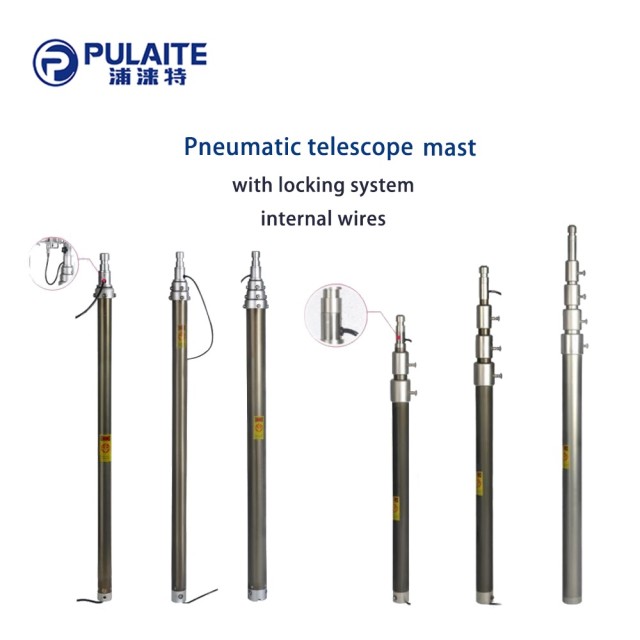

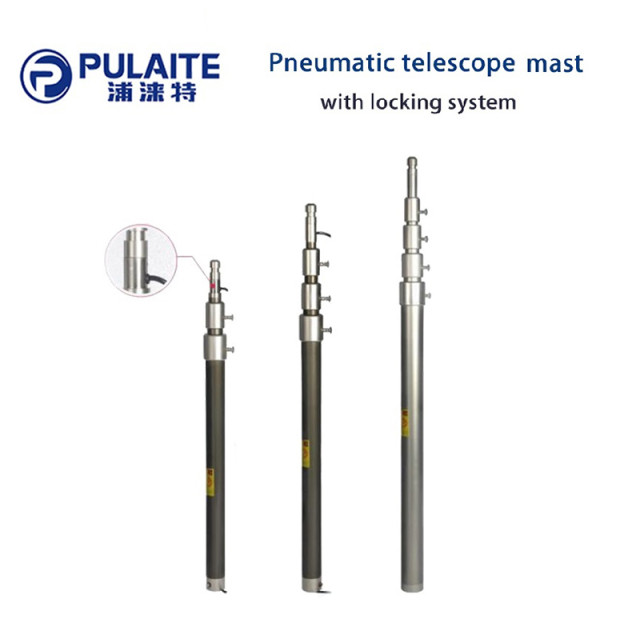

SJN-A telescopic masts are dedicatedly designed for lifting mobile lighting equipment,they can be installed and fordable on the trailor .Internal cables make the masts more compact.Regular extended heights are 2.3m,2.7m, 3.5m,4.2m, 5.7m. Specific requests can be customized.
Online InquiryDescription:
SJN-A telescopic masts are dedicatedly designed for lifting mobile lighting equipment,they can be installed and fordable on the trailor .Internal cables make the masts more compact.Regular extended heights are 2.3m,2.7m, 3.5m,4.2m, 5.7m. Specific requests can be customized.
Specifications:
Model number
SJN-23TX
SJN-27TX
SJN-35TX
SJN-42TX
SJN-57TX
Close height
1300
1290
1528
1520
1880
Extended height
2300
2700
3500
4200
5700
Section
2
3
3
4
4
Max Diameter
Φ55
Φ69
Φ69
Φ87
Φ87
Air pressure
≤0.25Mpa
≤0.25Mpa
≤0.25Mpa
≤0.25Mpa
≤0.25Mpa
Weight
=5Kg
=6Kg
=8Kg
=13Kg
=16Kg
Lifting way
pneumatic
Wind resistance
≤8 grade
Max payload
≤20Kg
Material
Aluminum T6
Surface
Hard oxidation treatment (bronzing)
Wires
3×1.5mm2 and 4×1.0mm2
