CD-SGN55-41000X PULAITE Vehicle-Mounted Lifting Lighting Equipment

Description:

CD-SGN55-41000X is a vehicle-mounted lifting lighting equipment developed by Pulaite for large-area, high-intensity illumination at large-scale construction projects, emergency repairs, rescue operations and disaster relief. It is suitable for installation on medium-sized special-purpose vehicles, such as communication command vehicles, lighting vehicles, rescue vehicles and fire engines, and complies with the GB 26755-2011 Vehicle-Mounted Lifting Lighting Equipment standard.

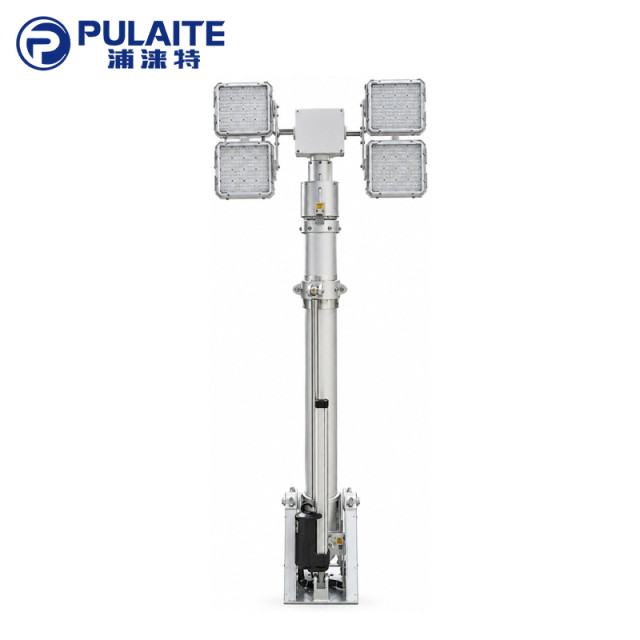

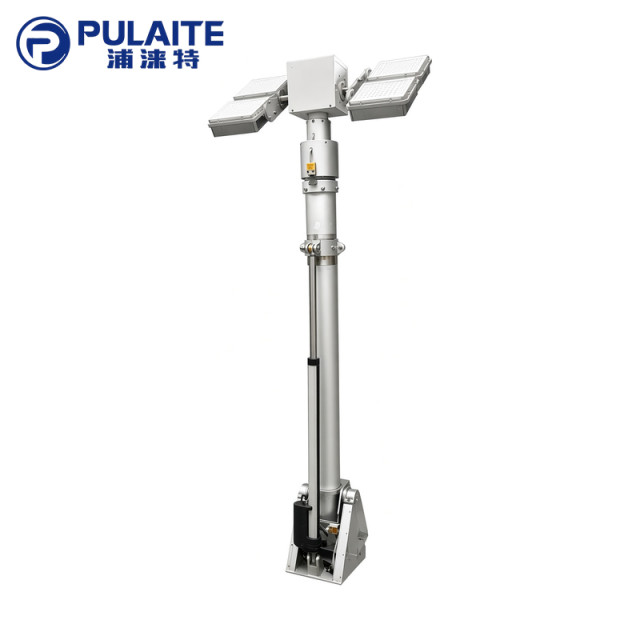

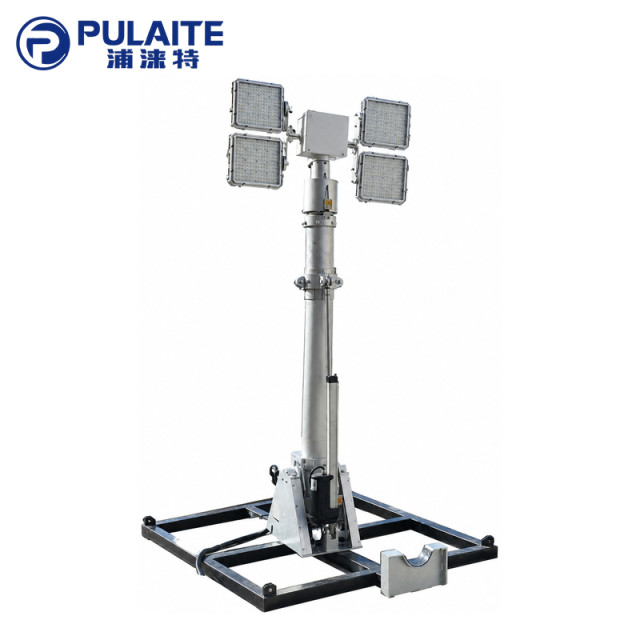

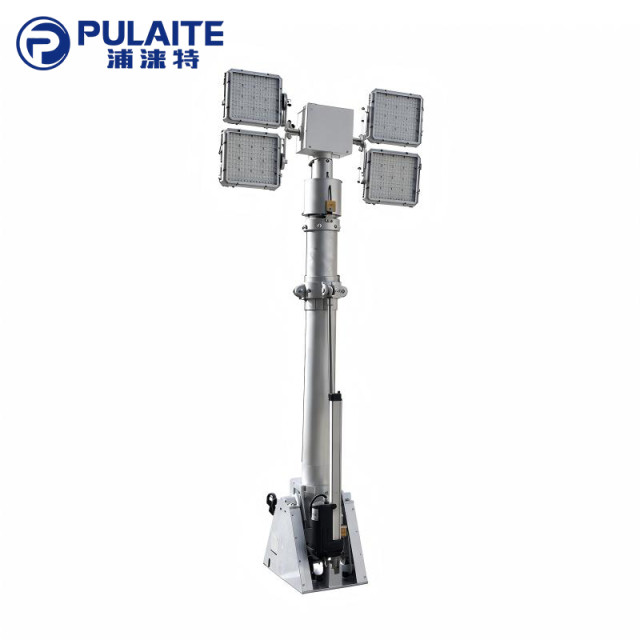

The equipment rises from its initial horizontal position to 90° by electric push rod, and the five-section pneumatic mast then lifts the lighting assemblies to a working height of 5.6 m from the base plate to the center of the lamp heads. Two lamp assemblies (1000W x 4, total luminous flux 420,000 lm) are carried on a motorized rotating platform with 380° horizontal and 270° vertical rotation at 4 r/min for omnidirectional positioning. An LCD controller displays the operating status, and the self-diagnostic system reports the exact fault location; wired and wireless remote control with a range of ≥100 m is provided. The system requires an external air source (0.3-0.8 MPa, φ10 mm connector) supplied by the vehicle.

Product selling points:

1. High-intensity lighting: four 1000W LED floodlights deliver a total luminous flux of 420,000 lm, with high luminous efficiency, long service life, low power consumption and excellent vibration resistance.

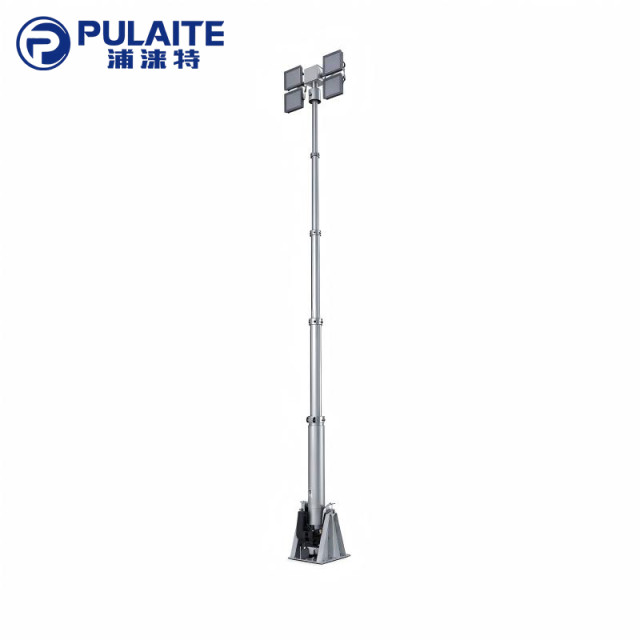

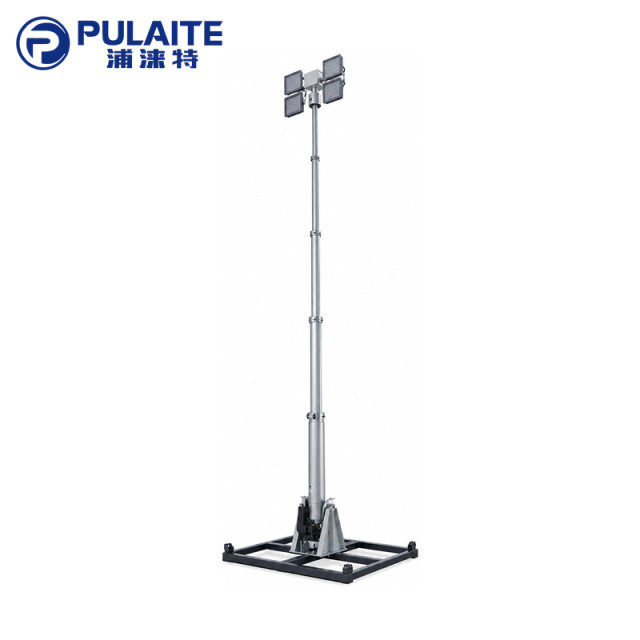

2. Five-section pneumatic mast: the equipment is raised from its initial horizontal position to 90° by electric push rod, and the pneumatic mast lifts the lighting assemblies to a working height of 5.6 m for a wide irradiation range.

3. Omnidirectional pan-tilt: 380° horizontal and 270° vertical rotation at 4 r/min complete the positioning illumination; the two lamp assemblies can be switched on and off separately.

4. Product advantages:

● Smart control system: the controller is equipped with an LCD screen showing the operating status, voltage, battery and lamp conditions; the complete system features a self-diagnostic function that displays the corresponding fault location whenever a fault occurs, and reports it on the remote display.

● Operation buttons: UP / DOWN / LEFT / RIGHT for pan-tilt rotation; Light 1 / Light 2 for the left and right lamp assemblies; Reset returns the equipment automatically to the lowest position from any pan-tilt angle; Stop halts mast extension or retraction at any time.

● Camera-ready design (optional): a camera mounting bracket can be installed above the rotating platform between the two lamp assemblies, with reserved video and control cables; the camera offers 380° horizontal and 180° vertical positioning.

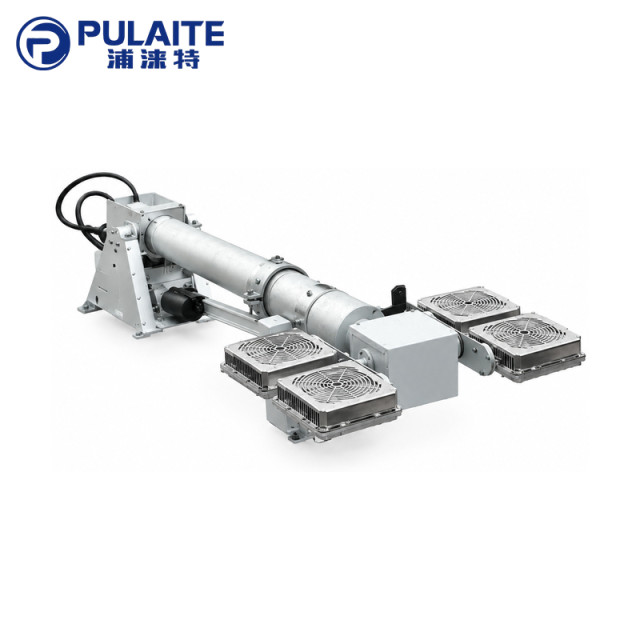

● Two reset positions: when the equipment is folded down, the lamp glass can face forward or downward; the reset position is configured before delivery.

● Rugged and easy to integrate: overall protection IP65 and lamp protection IP67 for operation from -30°C to +55°C; internal wiring harness; no onboard air supply is needed - the equipment connects to the vehicle air source at 0.3-0.8 MPa through a φ10 mm connector.

Specifications:

Packing List:

Lighting equipment x 1; control box (fire standard) x 1; drive box x 1; remote controller x 1; user manual x 1.

Applications:

CD-SGN55-41000X is designed for large-area, high-intensity lighting for fire departments, electric power companies and public security agencies, covering major construction projects, emergency repairs, rescue operations and disaster relief. It is suitable for installation on medium-sized special-purpose vehicles such as communication command vehicles, lighting vehicles, rescue vehicles and fire engines.
