CD18 PULAITE Vehicle Mounted Pneumatic Antenna Lift Mast

Description:

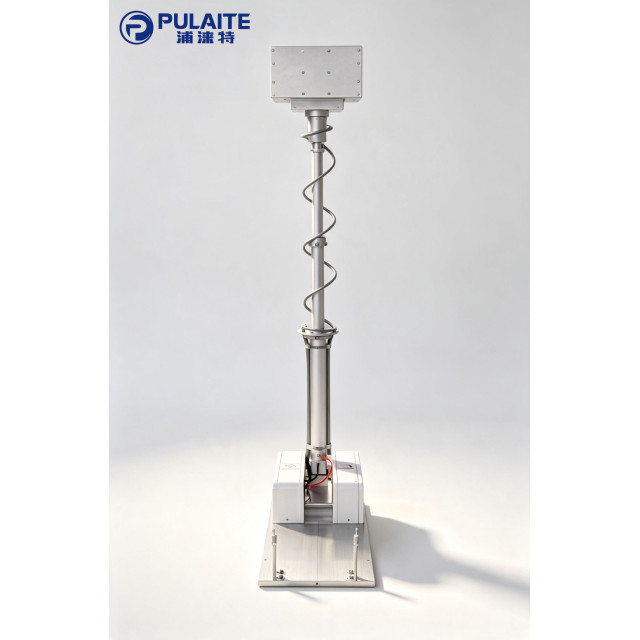

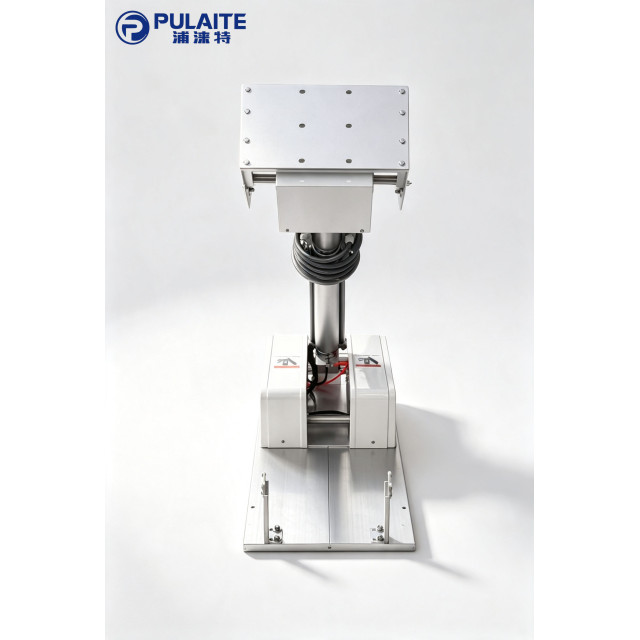

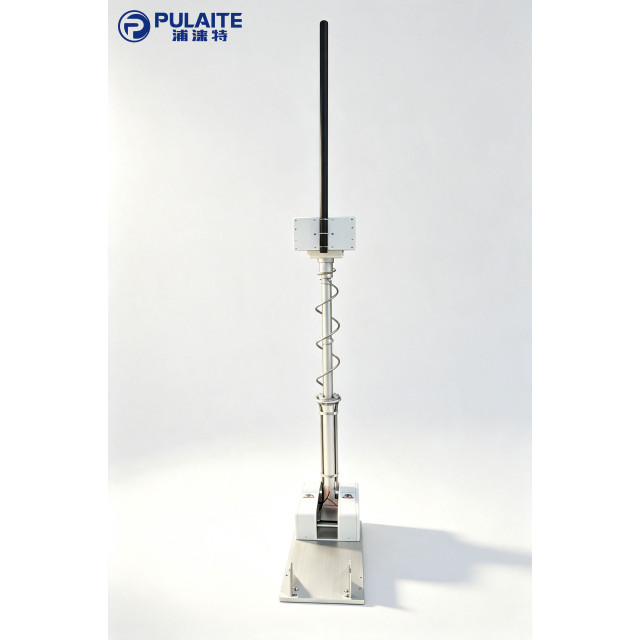

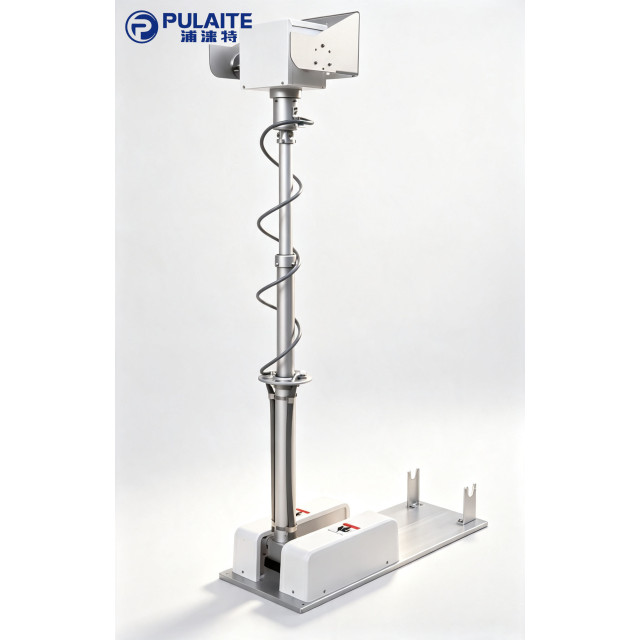

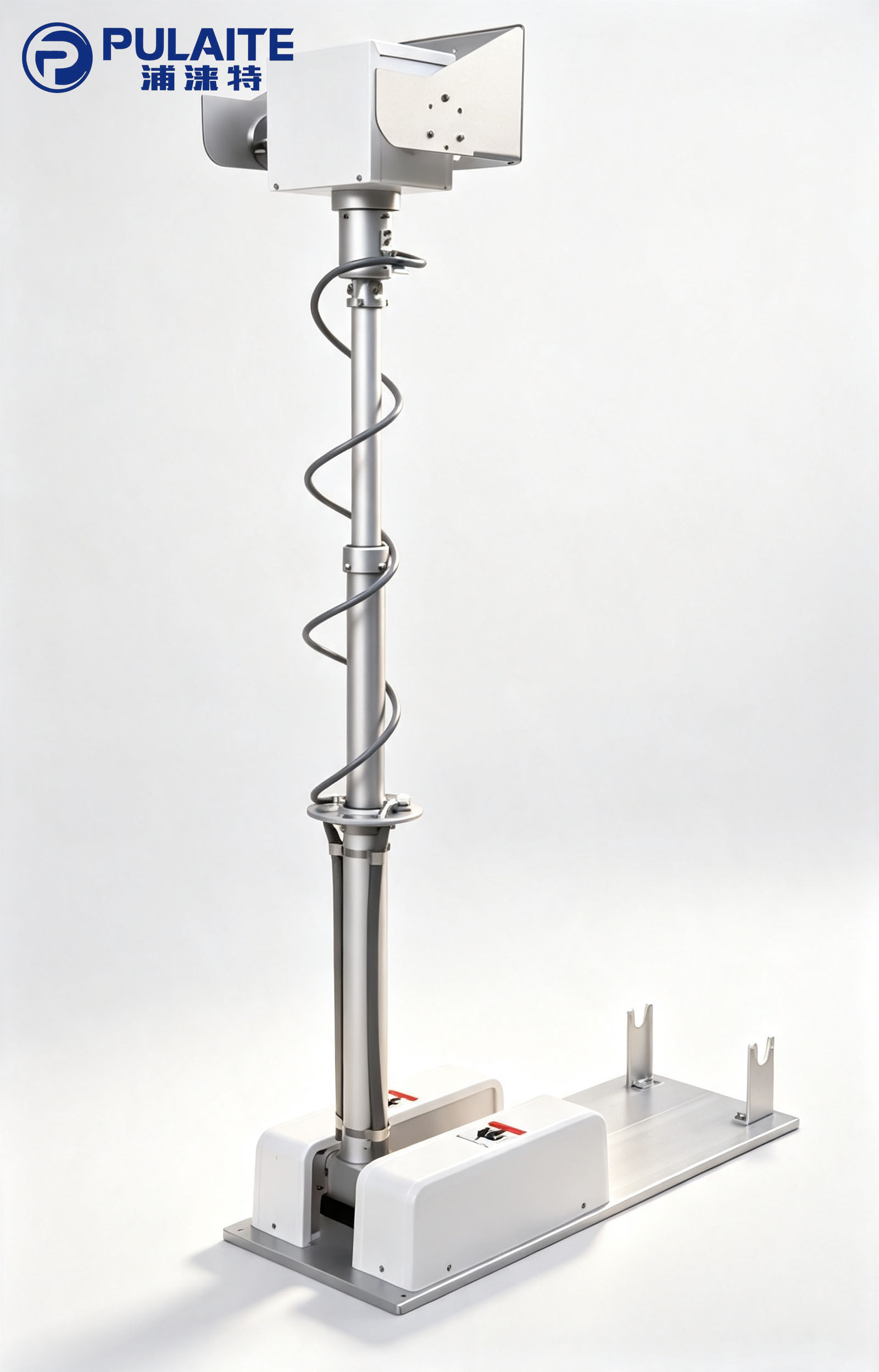

The CD18 lodging device is custom-developed for antenna installation, a series of vehicle mounted antenna lift equipment with a height of 1.6m when the air lift mast is raised. With the pneumatic lifting system, the antenna can be lifted to 1.8m, and it can be folded to 0 degree for space-saving transit.

It is suitable for equipping medium-sized special vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, and firefighting vehicles. It tilts the antenna to a height of 1.8m and expands the height by using three sections of pneumatic mast tube. It has functions of lifting, lowering, raising, and resetting: the equipment is lifted from the initial horizontal position to 90°, and then the lifting mast is raised to a height of 1.8m through an air pump.

Product selling points:

1. Purpose-built design: Custom-developed for antenna installation; the pneumatic lifting system lifts the antenna up to 1.8m, and the mast can be folded to 0 degree for space-saving transit.

2. Wide vehicle compatibility: Suitable for medium-sized special vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, and firefighting vehicles.

3. Multiple control modes: Wired controller, wireless remote control and RS485 interface, with simple Rise / Drop / Stop operation.

4. Reliable protection: IP65 protection level, working environment temperature from -25° to 55°, with automatic voltage limiting protection device (disconnect at 0.8Mpa, restore at 0.7Mpa).

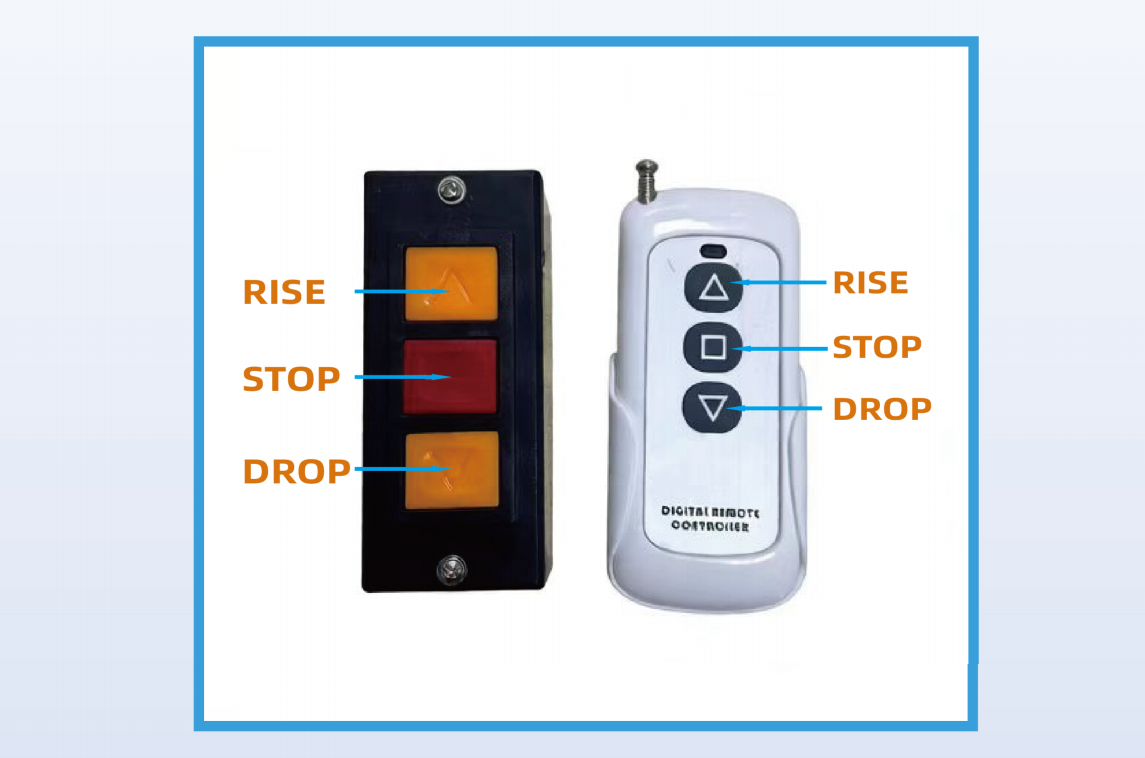

Remote control:

● "Rise": press the "Rise" button on the control box to raise the pole.

● "Drop": press "Drop" for mast pole telescoping down.

● "Stop": press "Stop" to stop mast pole telescoping up or down.

Specifications:
