To meet the needs of large-scale high-brightness lighting at work sites such as firefighting, electric power, public security and other large-scale construction operations, emergency repairs, rescue and disaster relief, this series of high mast lighting equipment has been developed.
Online InquiryDescription:
To meet the needs of large-scale high-brightness lighting at work sites such as firefighting, electric power, public security and other large-scale construction operations, emergency repairs, rescue and disaster relief, this series of high mast lighting equipment has been developed.
Features:

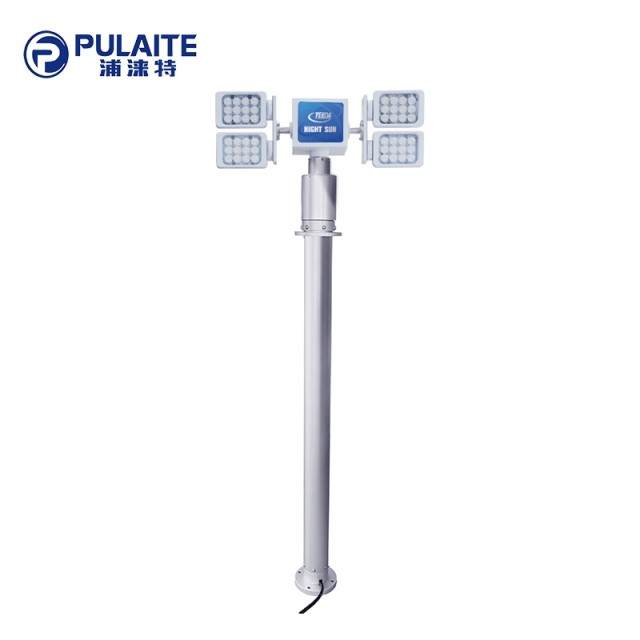

SG series vehicle-mounted mobile lighting equipment is a high-level night lighting emergency lighting system designed for the professional installation of medium and large vehicles.
This model has the characteristics of wired controller and wireless remote control, automatic reset, easy operation, high power, high brightness, wide irradiation range, long lighting range, etc., which can be quickly enabled to provide high brightness lighting. This product can well provide emergency lighting for fire fighting lighting, engineering rescue, disaster emergency vehicle, police car and other applications.
The telescopic mast of the SG/SGN series is fixed in the chassis of vehicle or side of the vehicle. The lifting mast provides a mounting plate at the bottom of the vehicle and a fixed splint on the roof. The mounting plate at the bottom of the vehicle is generally fixed on the bottom beam. The roof is fixed by using two flat plates provided by the SG lifting mast to fix the roof in the plywood to ensure that the SG lifting mast has sufficient support strength after being raised to 3.5 meter or more higher height.
Specifications:
|
Model |
Height |
Lamp power |
Lamp quantity |
Light source |
Luminous |
|
SGN75-2120L |
7.5M
(3.5mtr-15mtr,internal or external cable available)
|
240W |
2 |
LED |
28800 lm |
|
SGN75-4120L |
480W |
4 |
57600 lm |
||
|
SGN75-2200L |
400W |
2 |
48000 lm |
||
|
SGN75-4200L |
800W |
4 |
96000 lm |
||
|
SGN75-2600X |
1200W |
2 |
136000 lm |
||
|
SGN75-4600X |
2400W |
4 |
272000 lm |
||
|
SGN75-2150A |
300W |
2 |
Metal halogen |
22000 lm |
|
|
SGN75-4150A |
600W |
4 |
44000 lm |
||
|
SGN75-2250G |
500W |
2 |
50000 lm |
||
|
SGN75-4250G |
1000W |
4 |
100000 lm |
||
|
SGN75-2400G |
800W |
2 |
80000 lm |
||
|
SGN75-4400G |
1600W |
4 |
160000 lm |
||
|
SGN75-2600G |
1200W |
2 |
120000 lm |
||
|
SGN75-4600G |
2400W |
4 |
240000 lm |
||
|
SGN75-21000G |
2000W |
2 |
200000 lm |
||
|
SGN75-41000G |
4000W |
4 |
400000 lm |
